Ashley-Edison-Asia---AVR

Servo Electronic Design

Automatic Voltage Regulators (AVR)

Ashley Edison Protector Series

Deployed Worldwide By The Following Organisations

Stepless Regulation
AUTOMATIC, CONTINUOUS STEPLESS VOLTAGE REGULATION
Wide Voltage Tolerance
EXTRA WIDE INPUT VOLTAGE TOLERANCE
Precise-Voltage-Regulation-pgv0wb6fdmxti27coeisrwcjmykh6mfzwf1ez2xzi8
ULTRA PRECISE OUTPUT VOLTAGE ACCURACY
MODULAR CONSTRUCTED INDEPENDENT PHASE VOLTAGE CONTROL
Big Savings
YEAR-ROUND PASSIVE SAVING CAPABILITIES

EMPOWERED TO PROTECT.

Up To
2,000 KVA
Capacity Rating
Up To
± 40%
Input Voltage Tolerance
10x
More Accurate Voltage Delivery
Up To
> 98%
Efficiency
Rating
100%
Immune To Varying Load Change
Up To
2,000 KVA
Capacity Rating
Up To
± 40%
Input Voltage Tolerance
10x
More Accurate Voltage Delivery
Up To
> 98%
Efficiency
Rating
100%
Immune To Varying Load Change

Single Phase

SES-H-S Model
Added I/P Breaker Protection
1 to 100 KVA

Three Phase

SES-H-3P-S Model
Added I/P Breaker Protection
60 to 1,000 KVA

Three Phase

SESL-H-3P-S Model
Large Capacity Rating
200 to 2,000 KVA

Three Phase

SES-H-3P-S Model
Added I/P Breaker Protection
60 to 1,000 KVA

Ashley Edison Voltage Stabiliser AVR 255px

Single Phase

SES-H-S Model
Added I/P Breaker Protection
1 to 100 KVA

Three Phase

SESL-H-3P-S Model
Large Capacity Rating
200 to 2,000 KVA

*Outdoor units in IP54 enclosure available

Features

PERFORMANCE THAT PROTECTS.

Fully Integrated Features Within the

Protector Series AVR

Features

PERFORMANCE THAT PROTECTS.

Fully Integrated Features Within the

PROTECTOR SERIES AVR

10x More Accurate
Voltage Delivery

Ultra-Precise
±0.5% Output Voltage Accuracy

Duly distinguishing the Ashley Edison Protector Series from its competition, is it’s capability to deliver perfectly stabilised voltage supplies with precision at the highest level. This unique feature ensures even the most sensitive critical loads are fully protected from severely damaging voltage problems.

Other Automatic Voltage Regulators

Output Voltage Accuracy: ±5%

Ashley Edison Protector Series

Output Voltage Accuracy: ±0.5%

10x More Accurate
Voltage Delivery

Ultra-Precise
±0.5% Output Voltage Accuracy

Duly distinguishing the Ashley Edison Protector Series from its competition, is it’s capability to deliver perfectly stabilised voltage supplies with precision at the highest level. This unique feature ensures even the most sensitive critical loads are fully protected from severely damaging voltage problems.

Other Automatic Voltage Regulators

Output Voltage Accuracy: ±5%

Ashley Edison Protector Series

Output Voltage Accuracy: ±0.5%

Automatic, Step-less
and Continuous

Automatic, Step-less and Continuous

Constant Voltage Stabilisation 24/7

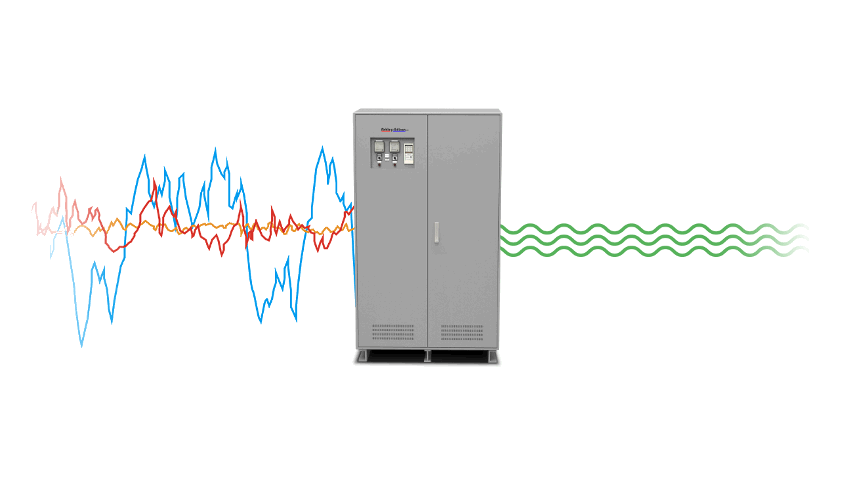

Ashley Edison Servo Electronic Mains Voltage Stabiliser converts erratic fluctuating voltage on the incoming into a smooth and optimal output supply—delivered straight to your load equipment to safeguard your operations from painful downtime, permanently.

Overcoming Inherent Voltage Fluctuations

Typical Industrial Configuration

Typical Commercial Voltage Problems

Day-Night-Graph

Constant Voltage Regulation,
from No-Load to Full-Load

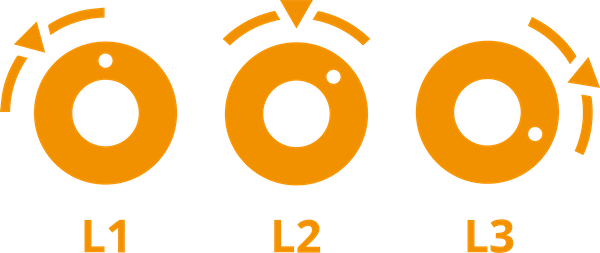

Independent Phase Modular Voltage Control

Active, autonomous, and adaptable. The Individual Voltage Sensing Modules overcome inherent voltage fluctuations on the incoming supply—by separately controlling each line on a 3 Phase circuit seamlessly and automatically.

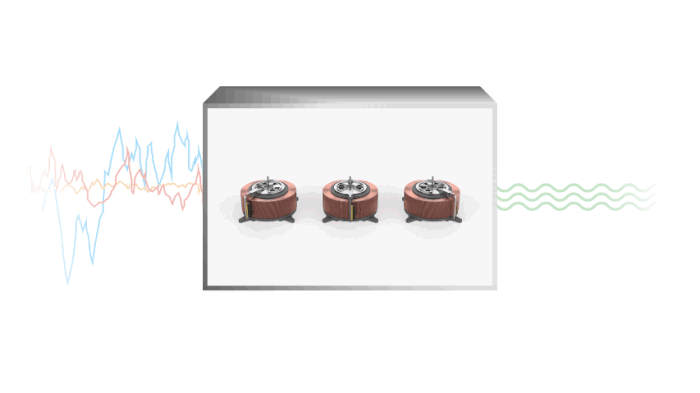

Independant Module Servo Waves
This unique feature ensures all voltage anomalies are optimally stabilised to your required output voltage value,
no matter the difference in voltage levels, or load imbalance on each phase.

Easy Maintenance. Peak Performance.

The Ashley Edison SES Protector Series allows for easy maintenance and seamlessly integrates into your operations, giving you the voltage protection your electrical system needs to deliver at peak performance—with complete peace of mind.

Easy Maintenance.
Peak Performance.

The Ashley Edison SES Protector Series allows for easy maintenance and seamlessly integrates into your operations, giving you the voltage protection your electrical system needs to deliver at peak performance—with complete peace of mind.

Built For The Grind.

Superior Components Engineered to Endure

A6M1JT variable transformer (variac)

Best-in-Class Variable Transformer

Assembled with Copper Windings of the Highest Purity

Outfitted with high-purity copper windings for outstanding electrical conductivity, the variable transformers within our voltage stabilisers possess a smooth, shiny surface that play a crucial role in the provision of smoother, step-less voltage regulation.

Premium-Grade Carbon Brush

Forged with the Highest Craftsmanship in Japan

Manufactured in Japan to the highest standards, Ashley Edison’s premium-grade carbon brushes are designed to stand the test of time. Gliding seamlessly against the pre-smoothened surface of the copper windings—the complete module delivers the stepless voltage regulation your load equipment needs, effortlessly.

A Card Above The Rest.

Detect and Correct Harmful Voltage Irregularities

Highly precise voltage regulation begins with the Ashley Edison MBB card—an advanced digital control unit engineered to detect and correct harmful voltage irregularities with hyper-responsive sensitivity.

Experience an industry-leading voltage solution that harnesses true RMS measurements—elevating your operations with ultimate digital control.

Glacial_Vortex_280px

More than 98% Efficiency with Glacial Vortex

Advanced Thermal System with Forced Air Cooling

Featuring up to 20 high-powered axial fans, our advanced thermal system with forced air circulation contributes to the outstanding >98% efficiency of our AVRs, allowing them to power through with maximum performance. Additionally, our buckboost transformers are outfitted with premium Japan-made Lamination Cores, resulting in greatly reduced heat loss.

Energy-Efficiency-Graph-FINAL-2

PASSIVE SAVINGS WITH OPTIMISED ENERGY EFFECIENCY

REDUCED ENERGY CONSUMPTION & EQUIPMENT MAINTENANCE

Our AVRs maximise your load equipment’s ROI by turning erratic incoming voltage supplies into clean, smooth output voltage. This provides your load equipment with prolonged equipment lifespan, reducing breakdowns and eliminating excessive maintenance and emergency repair costs, resulting in enhanced passive savings.

Mimic-Panel

Instant Status Alerts with
Mimic Panel

Display System for Rapid Evaluation

Ensuring operational stability, our Mimic Panels are simple to use and allow rapid visual evaluation of the AVR’s circuit status. A quick glance at the board lets you instantly appraise the system condition with the ability to scan the overall status of the complete power system.

PROTECTION MADE PERFECT.

All the protection features fully integrated within the Protector Series AVR

Switch On Your Safeguards

Automatic Failsafe Bypass Control

To protect your load equipment from harmful high voltage, the AVR’s MBB Card senses for any abnormal signals, and upon detection, triggers the automatic failsafe bypass control switch to prevent damaging voltage from harming to your load equipment.

Putting You In
Remote Control

Adaptable Volt-free Remote Monitoring

Dry Contacts (N.C & N.O) offers communication capabilities that alerts you with signals of impending issues that need solving. This allows troubleshooting to be conducted ASAP, without interrupting your operations.



Whether it’s a visual flashing light on the front panel display of the unit, or an over-voltage alarm, the automatic voltage stabiliser’s Volt-free Remote Monitoring System triggers an appropriate response that allows you to get alerted—from the comfort of your control room.

Lightning Shield

Achieve The Power
to Protect

Over-Under Voltage Protection

Our over-under voltage protection safeguards your equipment from exceedingly high or low voltage fluctuations.



This defensive feature protects your load equipment from harm by triggering the automatic bypass control switch, preventing damage to both the AVR and your equipment.

Reliably Enduring The Harshest Environments

Officially Field-Tested In Over 89 Countries Worldwide.

IDEAL IN SUB-ZERO TEMPERATURES OF WINTRY MOUNTAINS
Built to withstand environments from -15°C, up to 1,000m altitude.
THROUGH THE SCORCHING HEAT OF THE ARABIAN DESERTS
Fully operational in high temperatures up to 60°C.
THE HUMID TROPICALS AND EVERYTHING IN BETWEEN
Suitable for indoor tropical use 95% RH (non-condensing).
Previous
Next

Ideal In Sub-zero Temperatures Of Wintry Mountains

Built to withstand environments from -15°C, up to 1,000m altitude.

Through The Scorching Heat Of The Arabian Deserts

Fully operational in high temperatures up to 60°C.

The humid Tropicals And Everything In Between

Suitable for indoor tropical use 95% RH (non-condensing).

Benefits

Unlock the key to achieving
Cost-efficient, Time-Saving Operations

Eliminating Emergency Breakdowns Of Your Load Equipment

Passive Savings On Energy Cost And Minimised Maintenance

Make Your Investment Worth Every Cent

Flawless Protection For Your Operational Uptime

Fuss-Free-Installation

Fuss-Free Installation. Seamless Operations.

With the Ashley Edison SES Protector Series, you can be assured of a hassle-free installation process that allows for easy cable termination, setting the stage for effortless commissioning and seamless future operations.

Safety

Stay Safe With
Greater Protection.

Outfitted with high-quality protective acrylic shielding and fireproof cable troughs, Ashley Edison’s AVRs ensure a higher benchmark of operational safety for your personnel around the clock.

WE'VE GOT YOUR SYSTEMS COVERED.

Each Ashley Edison Automatic Voltage Stabiliser comes with a 3-Year warranty on all parts. From government agencies to Fortune Global 500 organisations, our AVRs have been tested and proven around the world for more than 40 years.


All our products are closely inspected as they undergo rigorous and stringent testing processes, passing through assembly lines with an intense focus on reliability. This is why we’re confident to offer you a 3-Year full warranty on all parts with no questions asked—so as to give you complete peace of mind at all times.

Our Projects

BP Logo

Project details

Singapore

2016

AVR | Up to 500KVA, 12 units

abb logo

Project detail

Latvia

2010

AVR | 3 Phase 50kva 14 units
Humber Bridge  Logo

Project details

United Kingdom

2010

AVR | 75kva & 60kva

BP Logo

Project details

Singapore

2014

AVR | 55kva, 24 units

BP Logo

Project details

Papua New Guinea

2007

AVR | Multiple 120kva

Coca-cola Logo

Project details

Saudi Arabia

2011

AVR | Up to 1000kva

Total Energies Logo

Project details

Africa

2012

AVR | Up to 2000kva 8 units

TUV SUD Logo

Project details

South-East Asia

2008

AVRs up to 150 kVA | Variable Transformers up to 160 Amp

Banyan Tree Logo

Project details

Seychelles

2002

AVR | Up to 1000kva

SAFEGUARD YOUR OPERATIONS
WITH COMPLETE PEACE OF MIND.

Promising total voltage protection for your operations, the SES Protector Series offers you complete peace of mind—ensuring freedom from excessive maintenance efforts and a great leap forward for your facility or electrical system.

COMPLIANT WITH INTERNATIONAL STANDARDS
ISO 9001:2015 | CE Mark | BS EN 55022 | BS EN 61000 | BS EN 60529 | CE MARKED

Trusted by Clients all over the world

CONNECT WITH US
TO DISCOVER MORE.

From brownouts to severe voltage fluctuations, Ashley Edison takes care of all your power needs by delivering optimised, stable voltage supply to your electrical system.



Curious to learn more? Get in touch with us. We’ll get back to you with a quote or solution within 24 hours and put all your questions to rest.

ASHLEY Edison International LTD



  1. Actual product may vary due to product improvements.
  2. Ashley Edison MBB Card is outfitted only on 3Φ models.
  3. Automatic Bypass Control capabilities only available for 3Φ models.
  4. Mimic Panel unavailable for 1Φ SES models, optional for 3Φ SES/SESL models.
  5. Over/Under Voltage, Phase Failure Protection is outfitted only on SES/SESL 3Φ models, optional for 1Φ SES models.
  6. Volt-free Remote Monitoring is outfitted only on SESL models, optional for 3Φ SES models, unavailable for 1Φ SES models.
  7. True RMS measurement subject to heavy distortion.
  8. 3-Years Warranty is valid from the date of supply.
  9. The “Ashley-Edison” trademark is duly registered within EUIPO Register under EUTM file No 011144904.
  10. The “Ashley-Edison” trademark is duly licensed for use by Ashley Edison International Limited, incorporated in the United Kingdom.
Scroll to Top

Easy Maintenance

Annual Ocular Maintenance
#1

Conduct Visual Inspection On Voltmeter:

Ensure reading is set to your desired set output voltage value (e.g. 230V).

#2

Ensure LED Status Indicators are at “Normal”.

#3

Visual Observation Of Variable Transformer Surface:

Use airbrush for dusty environments if necessary.

#4

Visual observation if carbon brush is not worn out.

#5

Conduct visual inspection to check variable transformers are all regulating (moving).


Accuracy. Beyond Imagination.

The digitally enhanced Ashley Edison MBB Card ensures pinpoint voltage stabilisation against the most erratic anomalies, allowing you to protect precious uptime, effortlessly. Harnessing ultra precision capabilities to produce some of the tightest output voltage tolerance available in the industry, the Ashley Edison MBB Card delivers ±0.5% voltage accuracy, enabling your load equipment to enjoy optimal voltage supplies, regardless of load change in your electrical system.

Expert Digital Control

Utilising the advantageous measurements of true RMS, the Ashley Edison MBB Card’s reads both perfect, sinusoidal waves, as well as complex, distorted non sinusoidal waves—up to 0.1V accuracy. Coupled with lightning fast response time of 1.5ms, this expert digital control feature equips your load with total voltage protection that is precise, continuous and ultra responsive.


Universal Presettable Function

The Universal Presettable Function onboard the Ashley Edison MBB Card allows seamless control of your desired output voltage value on all 3 Phases—with just a touch of a button. This multifunctional feature enables each AVR to fully operate with just 1 card, instead of separate cards for each individual phase. Fitted LED Output Voltmeter Display and Alert Indicator better facilitates easy status monitoring while performing maintenance on your AVR.


Microcontroller Unit (MCU)

MicroController Unit (MCU) helps you to deliver high speed and reliable efficiency in the AVR’s operations with less heat generation and reduced power consumption. Used in Supercomputers, Surface Mount Technology (SMT) allows components in the Ashley Edison MBB Card to be aligned closer together, creating a more compact and lightweight end product. Additional safety wire-to-board feature establishes fail-proof connectivity between circuits—so you can work safely on your AVR.

Fuss-Free Installation. Seamless Operations.

To ensure ease of installation, Ashley Edison addresses the concerns of contractors and installers by keeping it simple.


ALL TERMINATION POINTS ARE MANUFACTURED FOR EASY ACCESS

We keep the installation process simple and streamlined by allowing sufficient working space for installers. Taking the nut and bolt intrusions into consideration, we ensure that the distance between the uninsulated metal parts, the busbars, and cable sizes are compliant with IEC61439-1 and IEC 61439-2 guidelines.



Even in units with larger capacities, all busbar terminals are clearly marked out, and well positioned in line for easy identification of individual input and output terminations. Installation of these terminations are similar to those practised in high voltage transformers.

Stay Safe With Greater Protection

As safety is our utmost priority, Ashley Edison prepares for every scenario possible
—taking the puzzle out of your protection.

Designed And Engineered With Safety In Mind

We leave nothing to chance when it comes to larger capacity units (≥400KVA). By installing high-quality protective acrylic shields in front of live parts, we ensure the safety of your personnel at all times. For enhanced protection during installation, all distances between uninsulated metal parts, busbars, and cable sizes are compliant with IEC61439-1 and IEC 61439-2 guidelines.

Outfitted with fireproof cable trunking, this protective solution safeguards against long fire exposure even in hazardous areas and explosive atmospheres—providing maximum safety for mission critical applications.

Form Sent!
Thank you for getting in touch with us.

We will be in contact shortly.

Three Phase

SESL-H-3P-S Model
Large Capacity Rating
200 to 2,000 KVA



Enclosure 335
1000W x 1300H x 580D (mm)
250~300 KVA ± 15%
120~200 KVA ± 20%



Enclosure 336
1280W x 1480H x 660D (mm)
400 KVA ± 15%
250 KVA ± 20%



Enclosure 337H
1880W x 1950H x 880D (mm)
500 KVA ± 15%
300 KVA ± 20%



Enclosure 339
1470W x 1950H x 1340D (mm)
600 ~ 1,500 KVA ± 15%
400 ~ 1,000 KVA ± 20%
300 ~ 750 KVA ± 25%
300 ~ 600 KVA ± 30%

Three Phase

SES-H-3P-S Model
Added I/P Breaker Protection
60 to 1,000 KVA



Enclosure 333
490W x 800H x 990D (mm)
≤ 100 KVA ± 15%



Enclosure 334
540W x 900H x 1000D (mm)
120 – 150 KVA ± 15%



Enclosure 335
1000W x 1300H x 580D (mm)
180 – 300 KVA ± 15%
120 – 200 KVA ± 20%
120 – 150 KVA ± 25%



Enclosure 336H
1880W x 1480H x 660D (mm)
400 KVA ± 15%
250 KVA ± 20%
180 ~ 200 KVA ± 25%



Enclosure 337H
1880W x 1950H x 880D (mm)
500 KVA ± 15%
300 KVA ± 20%
250 KVA ± 25%



Enclosure 339H
2170W x 1950H x 1340D (mm)
600~1,000 KVA ± 15%
400~600 KVA ± 20%
300~400 KVA ± 25%

Single Phase

SES-H-S Model
Added I/P Breaker Protection
1 to 100 KVA

Enclosure 102
270W x 460H x 490D (mm)
≤ 20 KVA ± 30%
≤ 15 KVA ± 20%
≤ 10 KVA ± 25%
≤ 10 KVA ± 15%

Enclosure 103
400W x 580H x 500D (mm)
25 KVA ± 15%
20 KVA ± 20%
15 KVA ± 25%

Enclosure 332
380W x 670H x 780D (mm)
30 KVA ± 15%

Enclosure 333
490W x 800H x 990D (mm)
40 ~ 50 KVA ± 15%
25 ~ 30 KVA ± 20%
20 ~ 25 KVA ± 25%
15 ~ 20 KVA ± 30%

Enclosure 334
540W x 900H x 1000D (mm)
60 ~ 75 KVA ± 15%
40 ~60 KVA ± 20%
30 ~ 50 KVA ± 25%
25 ~ 40 KVA ± 30%
